Name: 10-inch High-Torque Brushless Lawn Mower Motor, 250mm Diameter, 67mm Tire Width, Ideal for Compact Lawn Mowers!
Rating: 5.0 (50 reviews)

Product Parameters

The main parameters

Number	Projects	Specification	Remarks

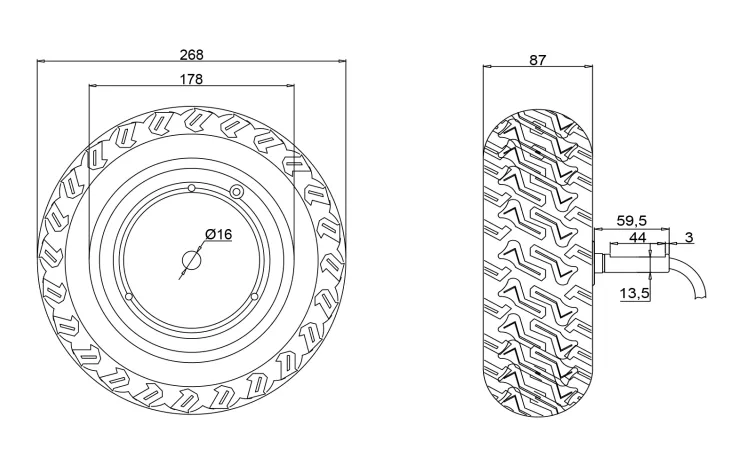

1	Motor diameter	268mm (slight deviation including tire size)	Subject to actual product
2	Rated voltage	36V
3	Rated power	350W
4	Rated rotating speed	500±50rpm
5	Rated current	8±0.5A
6	Theoretical torque	15.9N/M
7	Degree of phases	120°
8	Number of poles	15 pairs	30PCS
9	Out of the shaft	Single-sided D-shaped pressing shaft mm
10	lead exposed	300mm
11	Size of connectors	3+6 waterproof head
12	Brake mode	Electromagnetic brake
13	Shaft material	45cr
14	Waterproof rating	IP55
15	Maximum load	120kg
16	Environmental requirements	-20 to 65 degrees

Close

Product Details

Product Introduction

Introducing the 10-inch brushless lawn mower motor from Shenzhen Jinhaixin Holding Co., Ltd. With a diameter of 250mm and suitable for 67mm tire width, this motor features a high-torque brushless design, delivering powerful and reliable performance. The short shaft design is specifically tailored for compact lawn mowers, effectively preventing grass clippings from winding around. Made of high-quality materials, it ensures stable operation. Whether it's a small backyard or a large lawn, this motor can handle various terrains with ease, enabling efficient lawn mowing. We adhere to the values of 'Diligence, Innovation, and Pursuit of Excellence' and offer comprehensive technical support and high-quality after-sales service.

Advantages and features

1. High-torque brushless design for powerful performance. 2. Short shaft design to prevent grass clippings from winding. 3. Made of high-quality materials for stable and reliable operation. 4. Suitable for various lawn terrains, ensuring efficient mowing.

Application Scenario

This 10-inch brushless lawn mower motor is ideal for compact lawn mowers used in residential backyards, small parks, and commercial lawn care. It caters to both individual consumers and professional lawn care services.

Corporate Information

Shenzhen Jinhaixin Holdings Co., Ltd


Service Guarantee

Tel：

0755-28745009

Email：

[email protected]

Address：

Longgang District, Shenzhen, China

Call Now

Advisory Message

Pre-sales advice

1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure
